SM517

SM517

With seat tilt adjustement

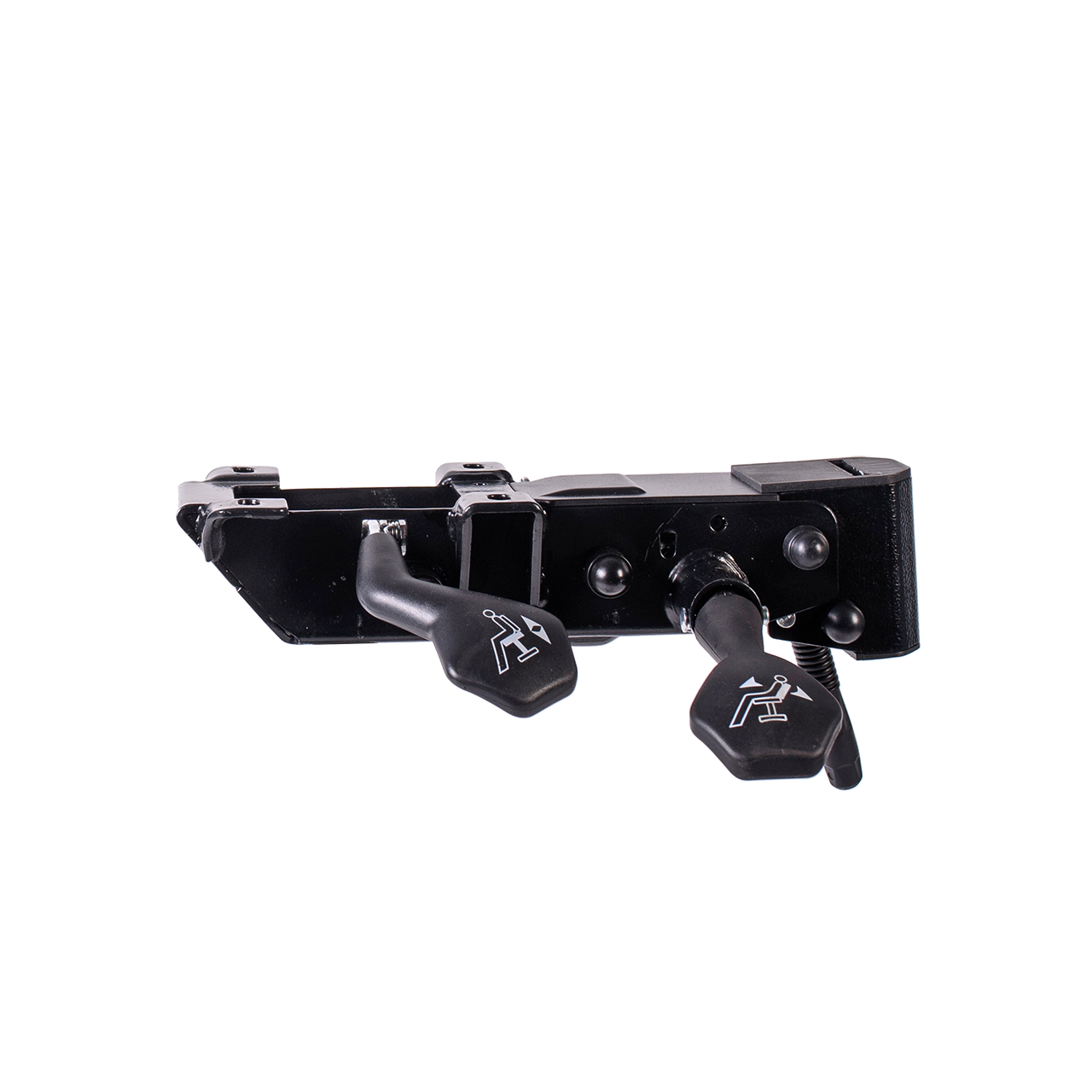

Steel mechanism with independant back- and seat angle adjustment, with attachment for flat back bar. Mainly used for saddle seats with a backrest.

Type
mechanism with adjustable seat- and back tilt

Seat angle
adjustable 12°

Backrest tilt
adjustable in height and angle 24°

Height adjustment
by lever

Cone
28 mm

Finishing
black coating

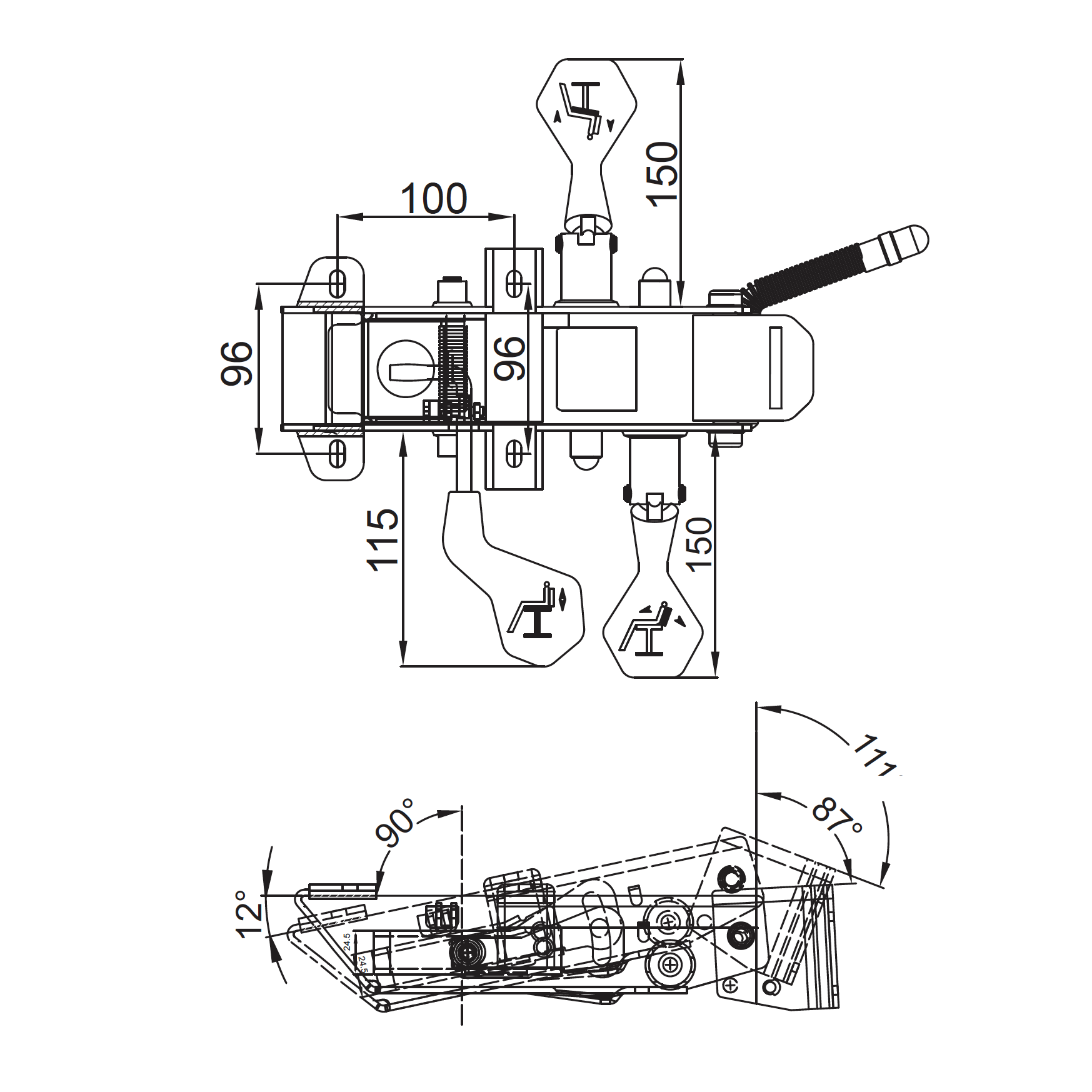

Hole pattern
mechanism: 96/100 x 100 mm
back bar cover: 85-105 mm

Item numbers
Mechanism
black » SM517

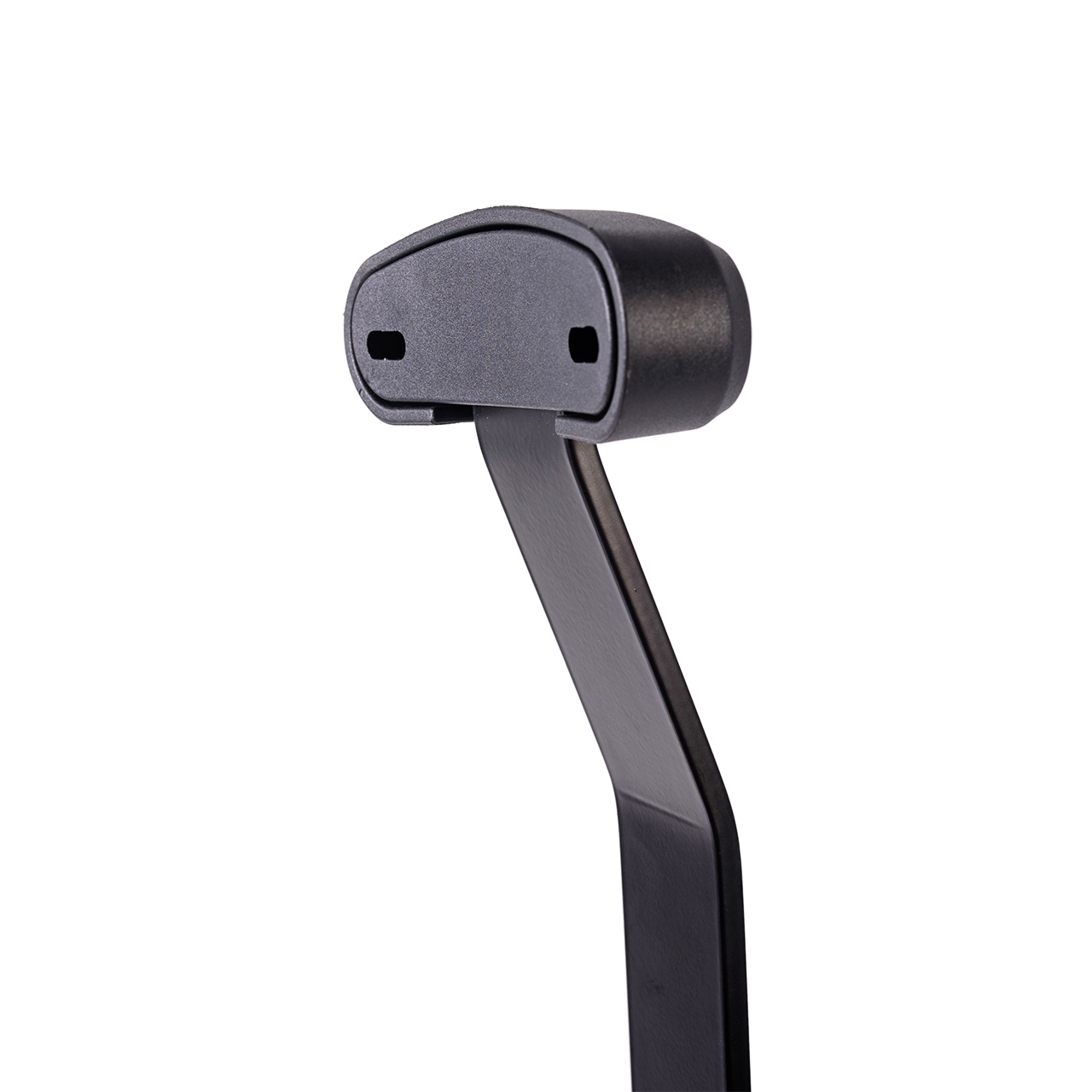

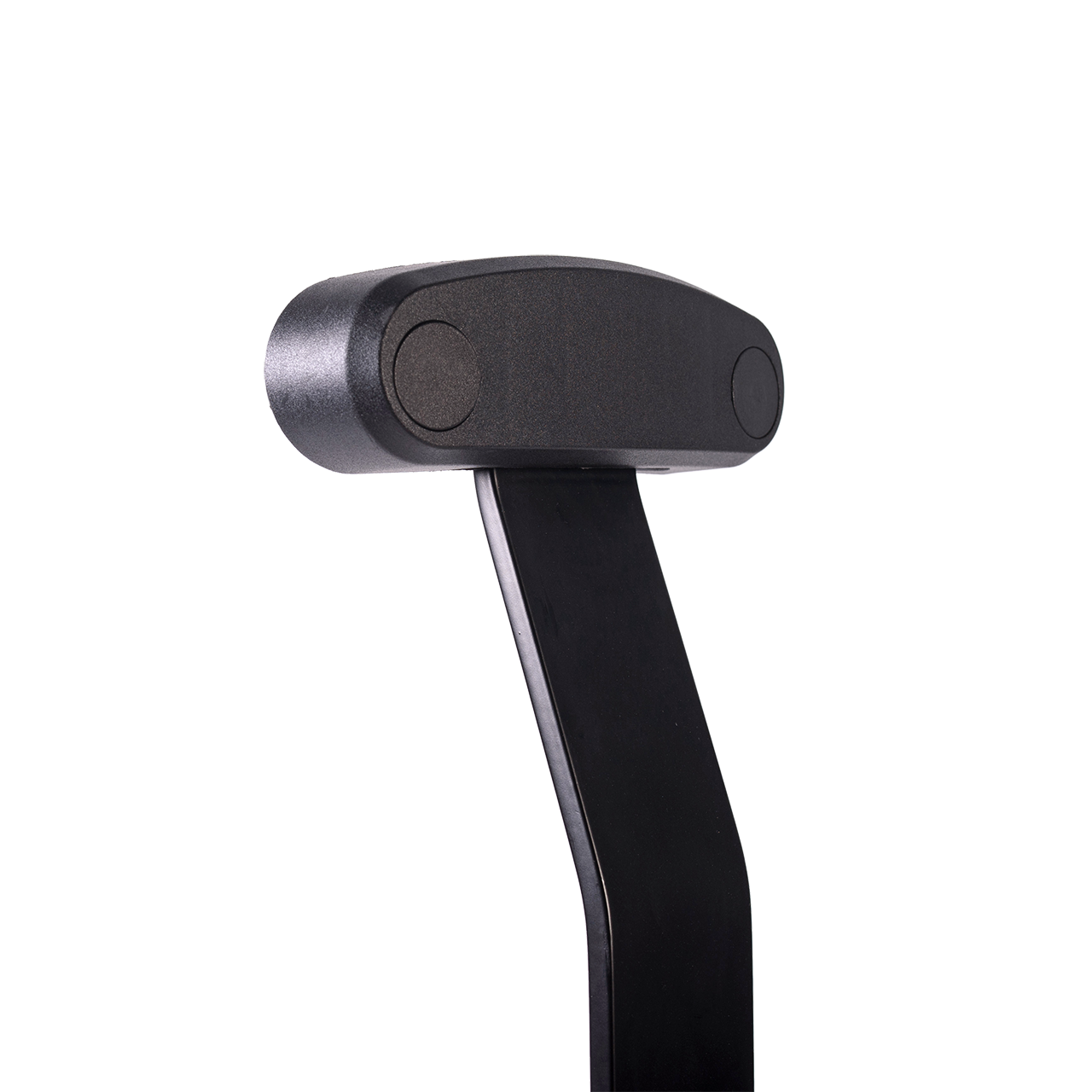

Back bar and back bar cover

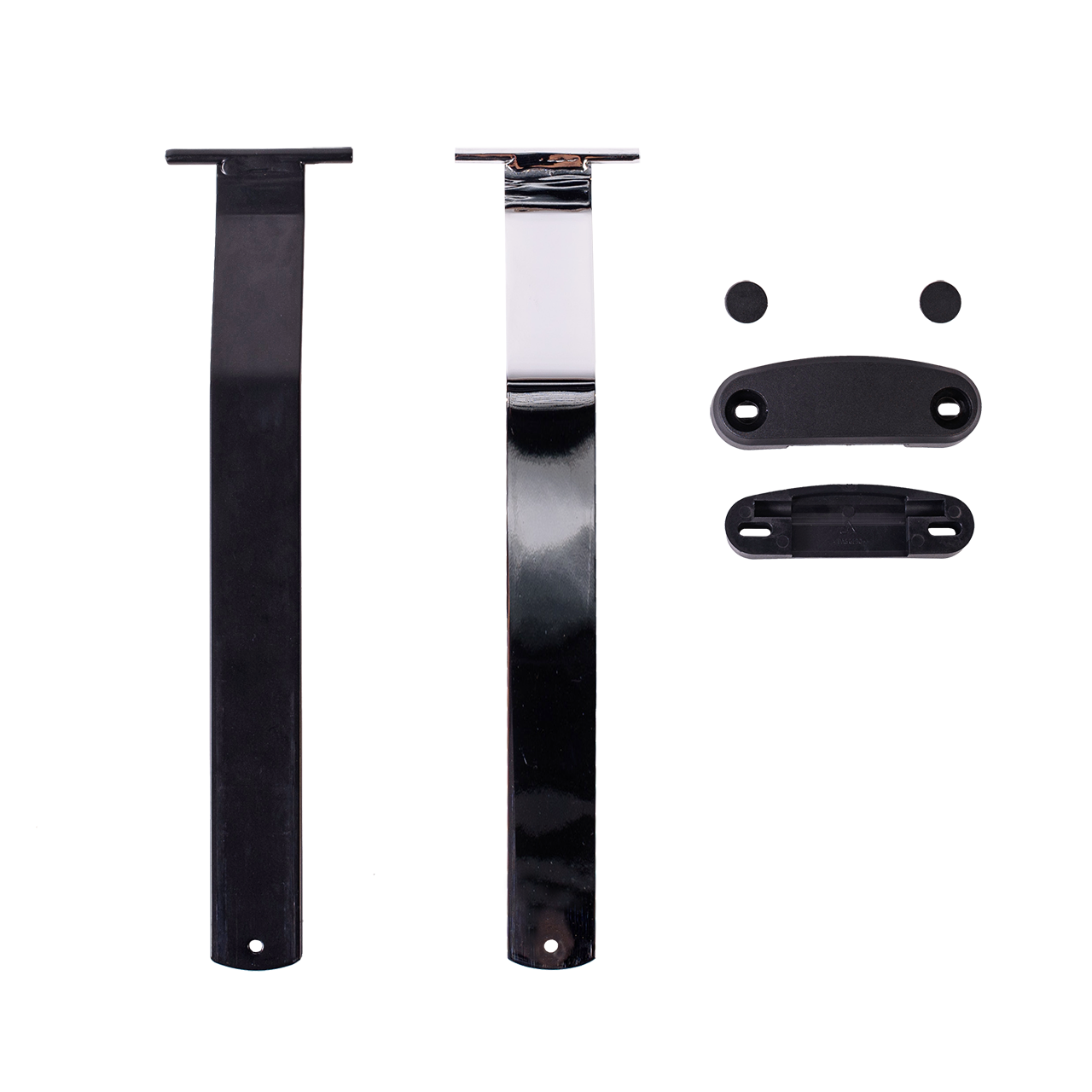

back bar black, L 450 mm » AS653-B
back bar chrome, L 450 mm » AS653-C

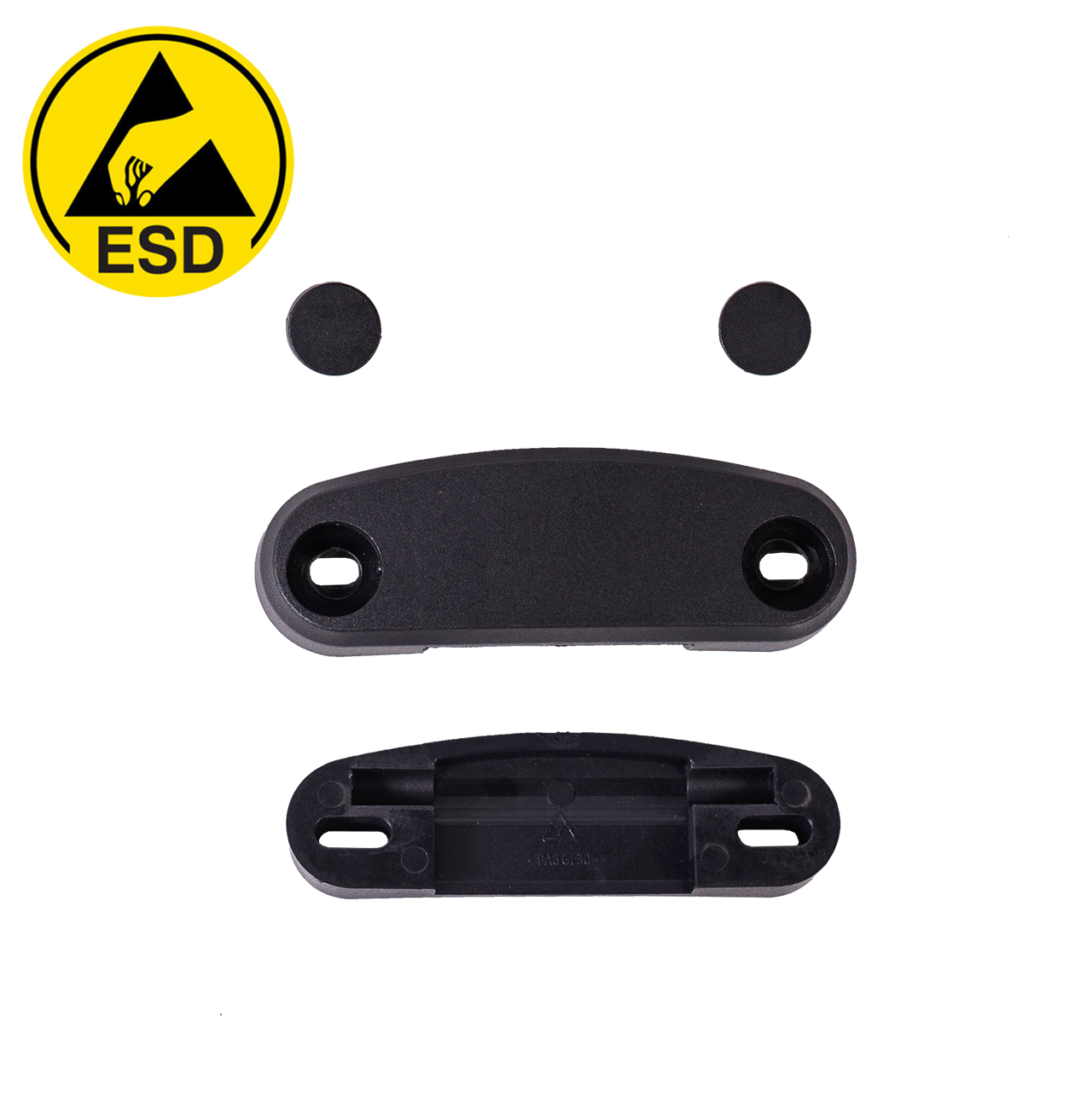

back bar cover black nylon » AS930
